Corrosion Resistant High Temperature Resistant Stainless Steel Woven Wire Mesh Metal Filter Screen with Customizable Size

10-500 Mesh Plain Twill Dutch Weave, Metal Filter Screen for Chemical Food Water Treatment Filtration, Factory Wholesale Custom Size

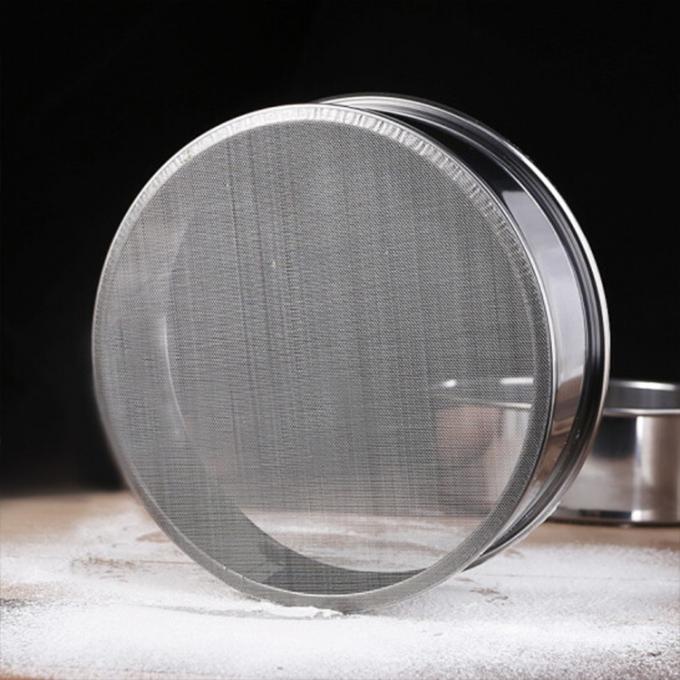

Stainless steel woven wire mesh is crafted from high-quality stainless steel wire using precision looms. It features uniform mesh openings, a stable structure, and excellent corrosion and high temperature resistance.

Widely used in petrochemical, food and pharmaceutical, water treatment, mechanical protection, and architectural decoration industries. Can be customized to different mesh counts, wire diameters, and widths, and further fabricated into finished products such as filter cartridges, filter discs, and mesh baskets.

• Premium Material - Made of genuine 304/304L/316/316L stainless steel, delivering outstanding corrosion and rust resistance for long-term use in both indoor and harsh outdoor environments. The 316 grade is ideal for seawater and high-salinity applications.
• Precision Weaving - Woven on CNC looms for tight, consistent interlacing of warp and weft wires with minimal aperture deviation. Available from 2 mesh (coarse) up to 635 mesh (fine) to suit a wide range of filtration and sizing requirements.
• High Strength & Dimensional Stability - The interwoven wire structure resists tension, pressure and impact without deformation, maintaining accurate mesh openings even under differential pressure and repeated cleaning cycles.
• Heat Resistant - Withstands continuous operating temperatures of 500-800°C, suitable for high-temperature flue gas filtration, heat treatment and drying processes; also performs reliably at low temperatures.
• Food-Safe & Eco-Friendly - 304/316 grades meet food-contact safety standards - odor-free, non-toxic and free of hazardous leachables, suitable for direct use in food & beverage and pharmaceutical production.
• Reusable & Easy to Clean - The smooth surface resists clogging and can be effectively cleaned by backwashing, ultrasonic cleaning or chemical soaking, delivering a low total cost of ownership over time.

Stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, and classification, screening and filtering of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.

Applications include:

• Sieving and filtering in acid and alkali environment conditions
• Petroleum industry as mud mesh
• Chemical fiber industry as screen mesh
• Plating industry as acid cleaning mesh

Stainless steel woven wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Due to its own characteristics of stainless steel, the stainless steel woven wire mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance corrosion.

The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.

This is the most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

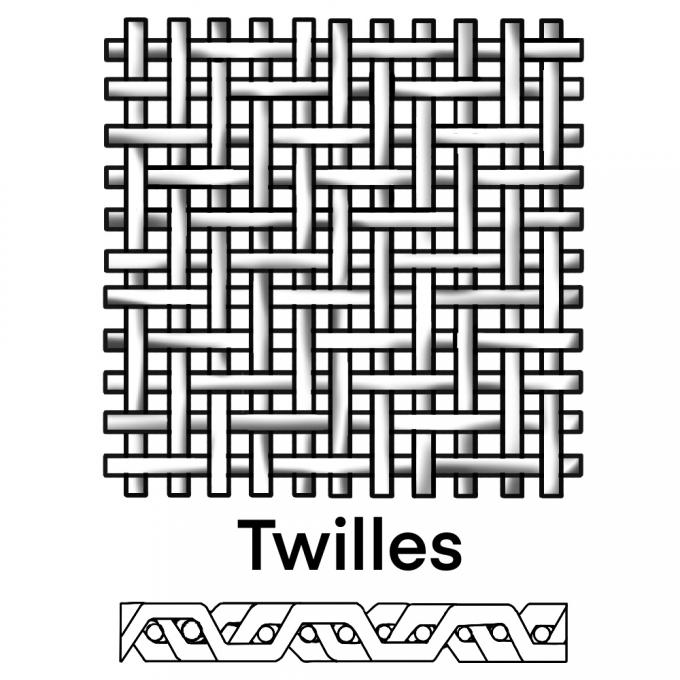

The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.

The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.

Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire and so on.

Since its beginning, we have been working at four points: High Quality, Quick Delivery, Better Price and Thorough Service. Rely on the product quality and our credit standing, we have got favourable comments from the customers.

The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Since the year it was established, we developed our powder and credit standing and got reliances of our customers in home and abroad. Our products is checking by very high standard, and the qualified ones leaved the factory to the whole county and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.

For more questions, please contact with our sales.
