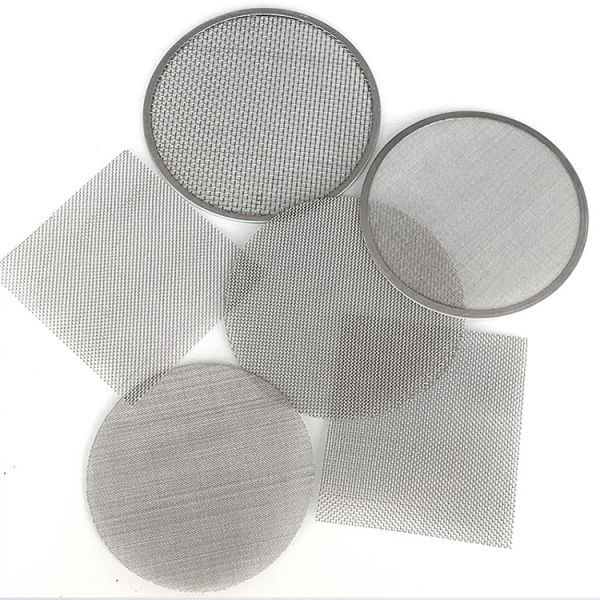

Various Size Silver 304 Stainless Steel Wire Mesh Filter Disc Flat Round Shape Woven Wire Mesh Screen Strainer
Product Description
Material:
- Common material: SUS201, 304, 304L, 316, 316L, 431, 321 stainless steel wire
- Special material: 410/430, 310S, 904L stainless steel wire
- UNS S31803(S32205) duplex stainless steel wire
- UNS S32750 Super duplex stainless steel wire
Wire Diameter: 0.015-2.8mm
Mesh counts: Plain/Twill weave: 2-635 mesh Dutch weave: 12×64-500×3200 mesh
Product Application
What industries are stainless steel wire mesh used in?
Stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, classification, screening and filtration of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.
Specific Applications:
- In acid, alkali environment conditions sieving and filtering
- Petroleum industry as mud mesh
- Chemical fiber industry as screen mesh
- Plating industry as acid cleaning mesh
Product Specifications
| Product Name |
Reverse Ultra Fine Plain Weave Stainless Steel Wire Mesh |
| Wire Material |
SU302, 304, 316, 304L, 316L, 310S, 321 etc |
| Technique |
Plain Woven |
| Weave Type |
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc |
| Mesh Count |
1 mesh - 650 mesh |
| Wire Diameter |
0.025 mm - 3 mm or custom |
| Width |
40 mm - 210 mm |
| Packing |
Water-Proof, Plastic Paper, Wooden Case, Pallet |
| Length |
30m/roll |
| Performance |
Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties |
Stainless steel woven wire mesh is made by stainless steel wire woven together to form a square opening or oblong opening. Due to its characteristics, the mesh has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, anti-acid and alkali corrosion resistance.
Weave Types
Plain Weave: This is the most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave: The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.

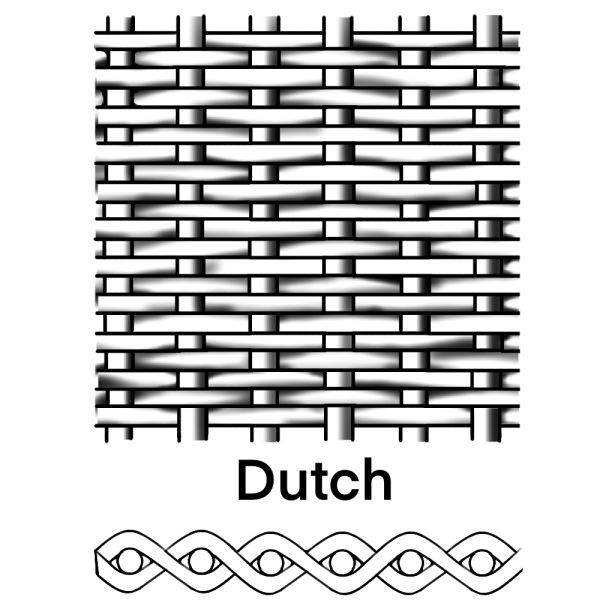

Dutch Weave: The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. This type of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Packing & Delivery
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire and more.
Since its beginning, we have been working at four points: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have received favorable comments from customers.
The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Since establishment, we have developed our power and credit standing and gained reliance of customers in home and abroad. Our products are checked by very high standards, and qualified ones leave the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.
FAQ
Q: Are you trader or manufacturer?
A: We are a professional wire mesh manufacturer.
Q: Can I get the free sample?
A: Yes, we can provide you free sample for testing.
Q: What is your payment term?
A: TT, LC, DP, Western Union, Paypal, etc. Note: you can apply for OA payment.
Q: Can I customize the products?
A: Yes, as long as provide specification or drawing, we can produce products what you want.
Q: How long is the delivery time?
A: More than 500 kinds of stock products, the fastest delivery is 24 hours. Customized products, the fastest delivery is 15-20 days.
For more questions, please contact with our sales.
